Also my current drayton digistat scr isn't showing digostat lights i have checked we do have power does this mean that the unit has failed? Installing the scr too close to the metal side panel or mains cables may interfere with the radio signal. I hope you are not thinking of keeping the drayton digistat+rf and replacing the scr with a bdr91. What should the wiring for the honeywell bdr91 unit be? Page 1 drayton digistat rf3 'wireless system' user instructions scr receiver initial start up important:

The scr should be wired in to replace hard wired room or programmable thermostats shown on the system or boiler wiring diagrams.

With the relevant diagram, to comply with he digistat+2rf/+3rf and the scr are now successfully. Always check other manufacturers instructions for compatibility. Complete the wiring to the scr wallplate in accordance with the. Commissioning the drayton digistat rf wireless system 1. Page 1 drayton digistat rf3 'wireless system' user instructions scr receiver initial start up important: Pop the digistat unit off the wall and take over to scr unit 2. £90.00, drayton digistat + rf601 room thermostat rf digital room thermostat does not include the digistat scr receiver. The wiring on my scr is: View the drayton digistat+1 manual for free or ask your question to other drayton digistat+1 owners. The scr should be wired in to replace hard wired room or programmable thermostats shown on the system or boiler wiring diagrams.

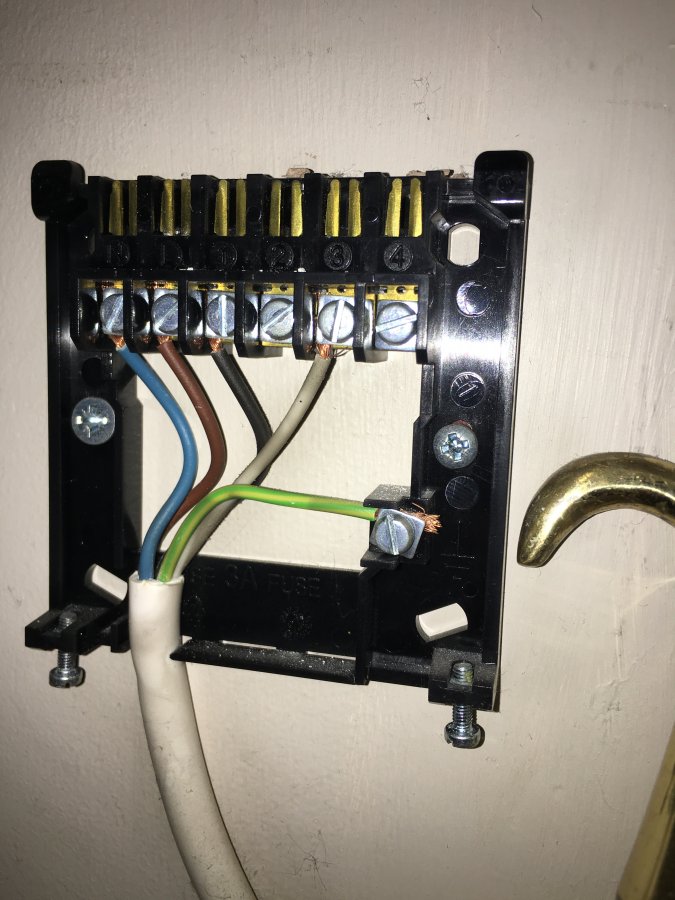

Source: www.diynot.com

Complete the wiring to the scr wallplate in accordance with the. Always check other manufacturers instructions for compatibility. ⎙ drayton digistat+1 rf710 manual (operation & user's manual, 8 pages): Drayton's stylish wireless digistat+rf with tactile, audible and visual feedback. Position, close to the boiler or 3. Find more compatible user manuals for digistat 2 thermostat device. Turn off the power supply to the scr receiver unit and leave for 5 seconds 4. The aim of this video is to show you how easy it is to repair a faulty drayton digistat scr unit. Drayton lp722 wiring diagram wiring diagram. The scr should be wired in to replace hard wired room or programmable thermostats shown on the system or boiler wiring diagrams. My elderly parent's drayton digistat scr boiler control is not working. ℹ️ download drayton digistat 2 manuals (total manuals: The scr should be wired in to replace hard wired room or programmable thermostats shown on the system or boiler wiring diagrams. The wiring on my scr is: It features a dial control to adjust the settings with a digital display to show the set temperature. Also my current drayton digistat scr isn't showing digostat lights i have checked we do have power does this mean that the unit has failed?

Source: img.yumpu.com

If it is then replace the batteries. Below you can view and download the pdf manual for free. Have a question about the drayton digistat+rf but cannot find the answer in the user manual? Pull down battery drawers in digistat unit and allow screen to go blank 3. Manual for drayton digistat+1 thermostat. 'override' button on the scr in a fault situation, even though. ℹ️ download drayton digistat 2 manuals (total manuals: What should the wiring for the honeywell bdr91 unit be? The aim of this video is to show you how easy it is to repair a faulty drayton digistat scr unit. View the drayton digistat+1 manual for free or ask your question to other drayton digistat+1 owners. ⎙ drayton digistat+1 rf710 manual (operation & user's manual, 8 pages): Need a manual for your drayton digistat+1 thermostat? Turn off the power supply to the scr receiver unit and leave for 5 seconds 4. Linked by a dedicated rf address. The digistat scr (receiver) should be mounted in a convenient position, close to the boiler or central heating 3. 2) for free in pdf.

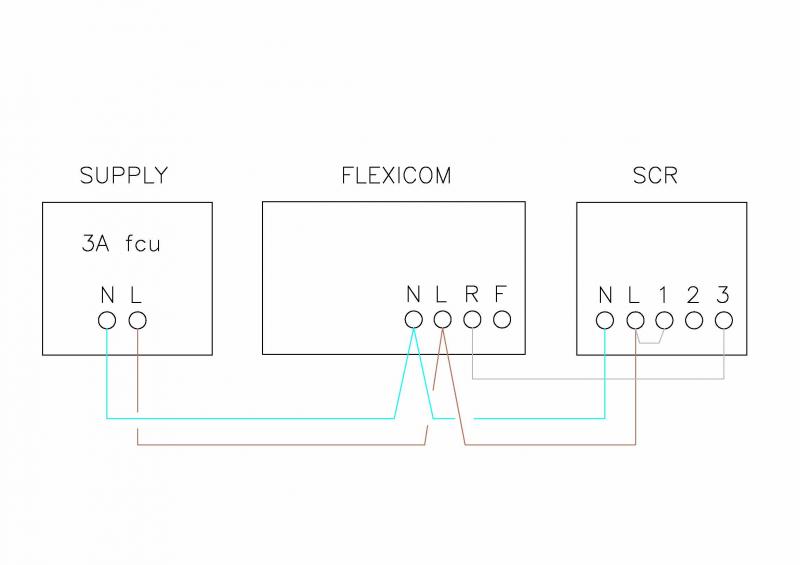

Source: www.diynot.com
